With the SawControl 800V4 from iBlade®, you can measure circular saw blades with a diameter of 230-800 mm fully automatically and document them precisely with our S.A.M. software. We offer a special direct drive kit for small saw blades from 80 to 250 mm.
Your advantages at a glance
Maximum efficiency with SAM
The innovative software analyzes and documents images fully
automatically - quickly, precisely and reliably.
Time savings and top quality thanks to state-of-the-art technology.
-
Simple profile creation
-
Definition of the required tolerances
-
A suitable real image for each value
-
Split-screen analytics - two measurements at a glance
-
Extensive archive for detailed reports
-
Digital data import/export
Crack Detection
With the “Crack Detection” software add-on, it is now possible for the first time
in the world to detect edge chipping and edge rounding fully automatically and
to transfer the necessary removal amounts for the grinding process directly
to the machine.
Multi-Bevel Tooth Face Measurement
With our unique 4-camera system and real image technology, we can for the first time:
-
Reliably and accurately measure multiple bevels on the breast surface
-
Provide precise data for quality control - eliminating the need
for manual interpretation
3D-Measurement-concept
Our unique 3D-measurement-concept enables complete and precise
recording of even complex tooth complex tooth geometries that could
not be reliably measured using conventional methods.
Using a high-precision 4-camera system, we capture all relevant features
and generate a complete 3D model - fully automatically and reliably.
Geometries
Steel Geometries
Wood Geometries
Measurement Options

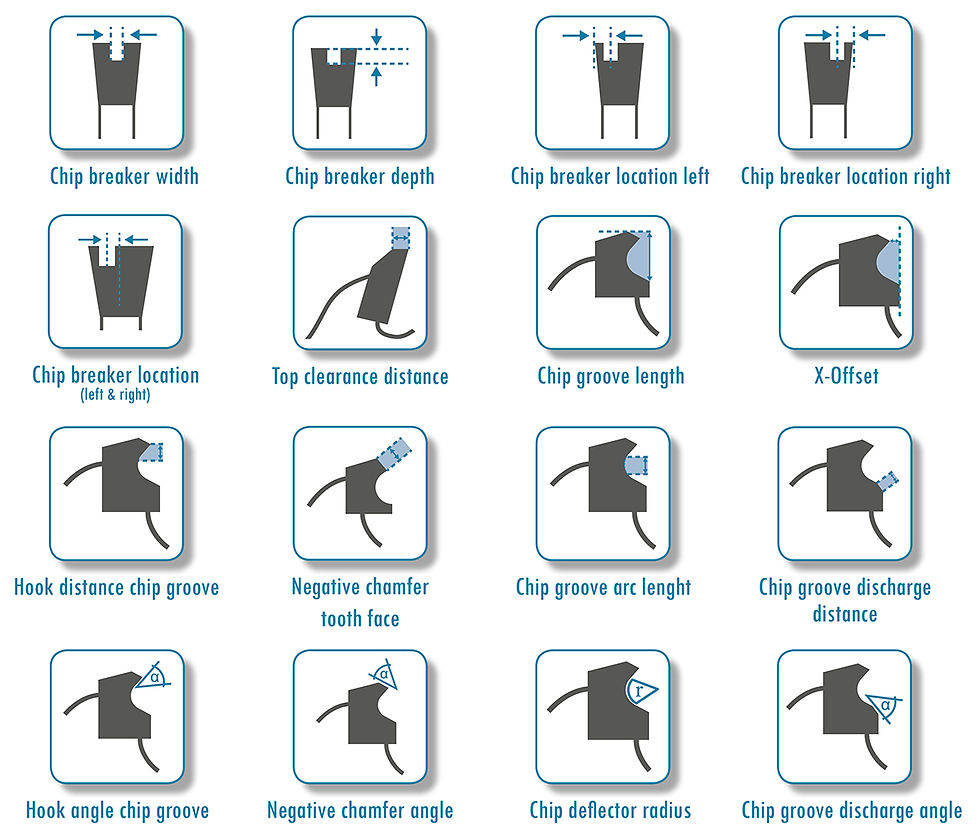

Steel Parameters
Most common
Body Parameters
MAterial
Accessory: Small Saw Blade Adapter
Kit direct drive for Smaller Sawblades down to max Ø 120 mm diameter
and max Ø 40 mm diameter of bore
NEW: with replaceable flange
